Precision Machined High Performance Gas Regulators
SERIES 3000 ADJUSTABLE PRESSURE
Our SERIES 3000 regulators offer high performance flow in a compact and simple design. Try out the SERIES 3000 for your next Co2 or INERT gas special application!

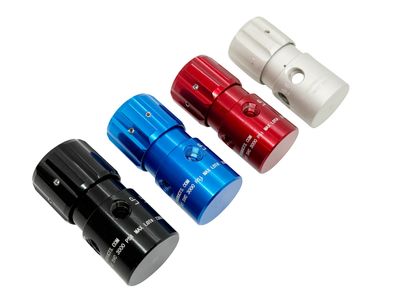

SERIES 3000 HIGH FLOW ADJUSTABLE REGULATORS
PRECISION MACHINED ALUMINUM REGULATOR BODY
The SERIES 3000 Co2 and Inert Gas regulators are machined from aluminum for light weight and cool anodized colors. Aluminum also allows for quick temperature correction for quick thawing in high flow applications.
HIGH FLOW, NO-FREEZING
The unique design allows for high flow pressures up to 600PSI of non-freezing Co2 at 45 CFM (Cubic Feet Per Minute). Standard flow ranges 125PSI, 250PSI, 300PSI, 400PSI, 475PSI, 500PSI, 600PSI.
BRASS INTERNAL PARTS
For strength and durability, the internal regulator piston cap and piston are machined from brass for years of service life and dependability.
PRESSURE BLEED
Regulators automatically bleed downstream pressure when adjusting the pressure control knob to a lower pressure setting.
PRESSURE GAUGE OPTIONS
Regulators with gauges are supplied with dry, white face simple to ready gauges. Liquid filled gauges and private label gauge faces can be supplied for OEM applications.
BRASS CGA CYLINDER CONNECTIONS
CGA320, 346 & 580 Cylinder connections are available for Carbon Dioxide, Air, and Inert Gases (Helium, Argon or Nitrogen)
Outlet CONNECTION OPTIONS
Regulators are supplied with 1/4" Female NPT outlets and/or brass quick connects up to 300PSI. Flare fittings are available upon special request.
SERIES 3000 ADJUSTABLE FLOW REGULATORS LINE UP
Co2 0-250PSI Single Gauge MINI-REG WITH QUICK CONNECT
CO2 0-125, 250, 300, 475, 500, 600PSI DUAL GAUGE, 1/4" FEMALE OUTLET
CO2 0-125, 250, 300, 475, 500, 600PSI DUAL GAUGE, 1/4" FEMALE OUTLET
Model Number: 3000-250ASG-320-QC
Carbon Dioxide Gas Service
0-250 PSI Range, Black Body
Single 400 PSI outlet gauge, QC Outlet
CGA 320 cylinder connection
CO2 0-125, 250, 300, 475, 500, 600PSI DUAL GAUGE, 1/4" FEMALE OUTLET
CO2 0-125, 250, 300, 475, 500, 600PSI DUAL GAUGE, 1/4" FEMALE OUTLET
CO2 0-125, 250, 300, 475, 500, 600PSI DUAL GAUGE, 1/4" FEMALE OUTLET
Model Number: 3000-XXXA-320
Carbon Dioxide Gas Service
Range Options: 125,250,300,475,500,600 PSI
Silver Body, Dual Gauges - cylinder and outlet pressure, 1/4" F Outlet, CGA 320 Cylinder Connection
CO2 0-250PSI BLACK ANODIZED, DUAL GAUGES WITH QUICK CONNECT
CO2 0-125, 250, 300, 475, 500, 600PSI DUAL GAUGE, 1/4" FEMALE OUTLET
CO2 0-250PSI BLACK ANODIZED, DUAL GAUGES WITH QUICK CONNECT
Model Number: 3000BK-250A-320-QC
Carbon Dioxide Gas Service
0-250 PSI Range, Black Body,
Dual Gauges - cylinder and outlet pressure, QC Outlet
CGA 320 cylinder connection
CO2 0-250PSI SILVER BODY, DUAL GAUGES WITH QUICK CONNECT
CO2 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
CO2 0-250PSI BLACK ANODIZED, DUAL GAUGES WITH QUICK CONNECT
Model Number: 3000-250A-320-QC
Carbon Dioxide Gas Service
0-250 PSI Range, Silver Body, Dual Gauges - cylinder and outlet pressure, QC Outlet CGA 320 cylinder connection
CO2 0-400PSI BLUE BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
CO2 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
CO2 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
Model Number: 3000-400A-320
Carbon Dioxide Gas Service
0-400 PSI Range, Blue Body,
Dual Gauges - cylinder and outlet pressure, 1/4"F Outlet
CGA 320 cylinder connection
CO2 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
CO2 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
CO2 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
Model Number: 3000-475A-320
Carbon Dioxide Gas Service
0-475 PSI Range, Black Body,
Dual Gauges - cylinder and outlet pressure, 1/4"F Outlet CGA 320 cylinder connection
SCUBA AIR 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
SCUBA AIR 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
SCUBA AIR 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
Model Number: 3000-475A-850
Air Regulator for Scuba Tanks (Non-breathing)
0-475 PSI Range, Black Body, Dual Gauges - cylinder and outlet pressure, 1/4"F Outlet
CGA 850 Scuba yoke cylinder connection
NITROGEN 0-400PSI BLUE BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
SCUBA AIR 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
SCUBA AIR 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
Model Number: 3000-400A-580
Nitrogen, Argon, Helium Gas Service
0-400 PSI Range, Blue Body, Dual Gauges - cylinder and outlet pressure, 1/4"F Outlet
CGA 580 cylinder connection
NITROGEN 0-600PSI GOLD BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
SCUBA AIR 0-475PSI BLACK BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
NITROGEN 0-600PSI GOLD BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
Model Number: 3000-600A-580
Nitrogen, Argon, Helium Gas Service
0-600 PSI Range, Gold Body, Dual Gauges - cylinder and outlet pressure, 1/4"F Outlet
CGA 580 cylinder connection
0-250PSI MINI-REG
0-250PSI REGULATOR
NITROGEN 0-600PSI GOLD BODY, DUAL GAUGES WITH 1/4" FEMALE OUTLET
Model Number: 3000-250ASG
Carbon Dioxide and Inert Gas Service
0-250 PSI Range, Black Body, 1/4" F Inlet, 1/4" F Outlet, 1/8" High Pressure Port
0-250PSI REGULATOR
0-250PSI REGULATOR
0-250PSI REGULATOR
Model Number: 3000-250A
Carbon Dioxide and Inert Gas Service
0-250 PSI Range, Silver Body, 1/4" F Inlet, 1/4" F Outlet, 1/8" High Pressure Port, 1/8" Low Pressure Port
475PSI REGULATOR
0-250PSI REGULATOR
0-250PSI REGULATOR
Model Number: 3000-475A
Carbon Dioxide and Inert Gas Service
0-475 PSI Range, Silver Body, 1/4" F Inlet, 1/4" F Outlet, 1/8" High Pressure Port, 1/8" Low Pressure Port
